cooking mixer machine

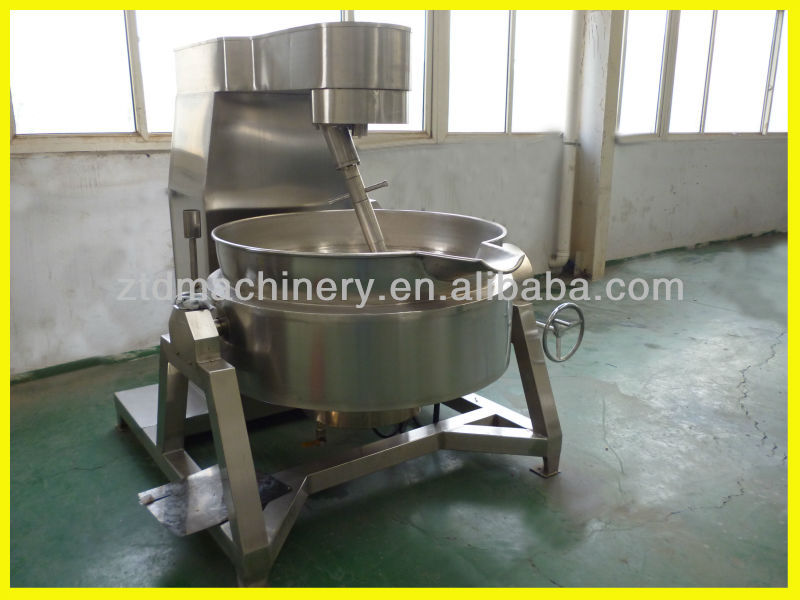

Cooking mixer machine:   Usage of the steam Jacket Kettle: Jacket kettle (stainless Jacket kettle), widely used in the producing of candy, medicine, milk, wine, cake, drink, Honey Line, can, ect, also can used in the big restaurant or dinning room for making soup, cooking food, fricasseeing, making congees. It is the good equipment for enhancing the quality, shorting the working time, changing the working conditions. The feature of the steam jacket kettle: The heat of source is steam with higher pressure. Big heating surface, high heat efficiency, heating uniformity, short liquid boiling time, heating temperature easy to control. The construction of the steam jacket kettle: 1. The inner pot of the kettle is made by Austenitic stainless steel which can heatproof and acidproof. Beautiful appearance, easy to install, operate convenience. The kettle with pressure gage. 2. The material of the out pot of the kettle can be chosen by the customers as the following: 1) Carbon steel A3 2) Stainless steel   All of the jacket kettle can be divided into the followings:   1. According to the form 1) Vertical Jacket kettle 2) Vertical mixing sandwich pot 3) Tiltable jacket kettle 4) tiltable mixing jacket kettle   2. According to the capacity: 1) 50L 2) 100L 3) 200L 4) 300L 5) 400L 6) 500L 7) 600L   According to the heating type 1) steam heated 2) electric heated   According to the material 1) stainless steel 2) carbon steel A3    The size and the specification :

products	capacity(L)	type	max working pressure		mixed speed	max	diameter of the pipe(minch)	rate of power(KW)
model	diameter/ depth(mm)		pressure(mpa)		(r/min)	tiltable angle
G50-I	50	tiltable	0.3	0.5	36	95°	‘1/2	0.75
G50-II	600/450	mix	0.3	0.5
G100-I	100	tiltable	0.3	0.5	36	95°	’3/4	0.75
G100-II		mix	0.3	0.5
G100-III	700/500	fix	0.3	0.5
G200-I	200	tiltable	0.3	0.5	36	95°	‘3/4	0.75
G200-II		mix	0.3	0.5
G200-III	800/550	fix	0.3	0.5
G300-I	300	tiltable	0.3	0.5	36	95°	’3/4	1.1
G300-II		mix	0.3	0.5
G300-III	900/650	fix	0.3	0.5
G400-I	400	tiltable	0.3	0.5	36	95°	‘3/4	1.1
G400-II		mix	0.3	0.5
G400-III	1000/700	fix	0.3	0.5
G500-I	500	tiltable	0.3	0.5	36	95°	’3/4	1.1
G500-II		mix	0.3	0.5
G500-III	1100/750	fix	0.3	0.5
G600-I	600	tiltable	0.3	0.5	36	95°	‘3/4	1.1
	1200/800

  We can supply the following products:

Contact us if you need more details on cooking mixer machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about jacket kettle with agitator、double kettle for soup. If these products fail to match your need, please contact us and we would like to provide relevant information.
