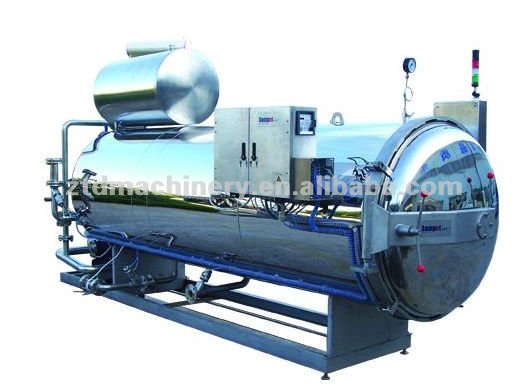

PLC Control System Autoclave Steam Sterilizer

Product Description

FEATURES 1.Very stable temperature in the pot A. The continually showering water comes from  the nozzles vertically located at the 4 corners of every tray  so that the termerature in the pot maintains very phase of the sterilization process. B. As the temperature in the pot is very stable FO value variation & over cooling could be minimized. 2.Direct heating, indirect cooling, no secondary pollution The atomized recycle water is heated directly through steam diffusion pipe, so the temperature rise rapidly.  Normally the water temperature in the pot only takes 12 minutes to rise from 20 °C to 121 (°C under 0.5 MPA steam  pressure. Cooling down is made by continually recycling the water through the pipe transformer. 3.Temperature rise &drop step by step The temperature could rise and drop in ten phase with computer control. Gentle linearity temperature rise  and drop protect the fragile food and glass bottles. The makes complete sterilization and maximum  preservation of food taste and colour. Also contribute to the consistency of sterilization effect on the whole  batch of  product. 4.Soft water sterilization , beautiful clean package surface Coolant water does not enter in the pot and not contact with package, which reduce the surface pollution  and save cost. 5.No special requirement on the water coolant It could be city water, underground water or sea water, which saves water source and reduces the cost. 6.Perfect pressure control&suitable for gas pack 7.Control system Siemens touch screen(or mitsubishi touch screen) Non-paper recorder(paper recorder) Imported automatic valve 8.Measure F Value, Display F Value, Control F Value   OVERVIEW   applicable to all kinds of hear-resistant package material: 1.Glass container: glass can 2.Metal container: tin can 3.Alum plastic container: PP bottle , HDPE bottle 4.Soft pack: Alum foil bag, transparent bag, Vaccum bag, High temperature cooking bag, ect.
Model No Outside measurement(mm)

inner

diameter

(mm)

length

(mm)

capacity

(m3)

thickness of

autoclave

(mm)

max working

pressure

(Mpa)

Max working

temperature

(°C)

Weight

(kg)

operating

weight

(kg)

total installed

power

(kw)

Voltage

(V)

length width high
PLJ.10-1.B.3 1885 1200 1458 1000 950 1 4 0.3 147 560 860 3.5 380
PLJ.10-2.B.3 2970 1200 1458 1000 1900 1.8 4 0.3 147 650 1250 6 380
PLJ.12-2.B.3 3102 1500 1660 1200 1900 2.6 5 0.3 147 860 1400 6 380
PLJ.12-3.B.3 4100 1500 1780 1200 2870 3.7 5 0.3 147 1200 1800 11.5 380
PLJ.12-4.B.3 4938 1500 1660 1200 3820 4.8 5 0.3 147 1300 2100 11.5 380
PLJ.13-4.B.3 4938 1600 1880 1300 3820 5.7 5 0.3 147 1500 2300 15.5 380
  MATERIAL you can choose the following 2 kind material as  your demands: 1.Stainless steel SUS304 2. carbon steel Q235-Btatic pouch retort/retort pouch machine/ retort pouch for tuna   LATEST MACHINERY     300l autoclave, autoclave retort, autoclave retort sterilizer, autoclave steam sterilizer, autoclave sterilizer, autoclave sterilizer sturdy, bottle sterilizing machine, canned food autoclave, continuous sterilizer, cooking retort, dental autoclave, food sterilization equipment, high temperature sterilization, horizontal autoclave sterilizer, hot food machines, hot water steam machine, hot water sterilizer, industrial retort, lab retort, laboratory autoclave, medical autoclave sterilizer, milk sterilizer, retort, retort machinery, retort pouch machine, retort sterilizer, rotary retort, stainless steel tank, stainless steel vessel, steam retort, steam sterilizer price, sterilization equipment, sterilizer machine, sterilizing autoclave, vertical autoclave sterilizer, water spray machine, water sterilization machine, food sterilization machine, autoclave sterilizer price, sterilization pressure vessel, pressure retort sterilizer, sterilization machine, steam sterilizer, used autoclaves sterilizers, sterilizer for glass jars, bottle sterilizer, glass bottle sterilization machine, milk sterilizing machine, retort sterilizer price, food sterilizer, spice steam sterilization, small autoclave sterilizer, steam sterilizer autoclave price, steam sterilizer machine, industrial food sterilizer, sterilizing machine for jars, canned food sterilization machine, milk bottle sterilizer, sterilization chamber, retort machine, small retort machine, full water stationary retort autoclave, food retort machine, laboratory retort, retorts sale, sterilizer retort, retort pouch sterilizer, electric retort, stainless steel retort, industrial retort, horizontal retort, retort sterilizer for milk, automatic retort sterilizer, retort food processing, steam Retort Sterilizer Autoclave, retort pouch autoclave sterilizer, spray retort sterilizer, retort for sale,

Contact us if you need more details on autoclave steam sterilizer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about horizontal autoclave sterilizer、spice steam sterilization. If these products fail to match your need, please contact us and we would like to provide relevant information.
