Horizontal Retort Food Processing Machines For Sale

Product Description

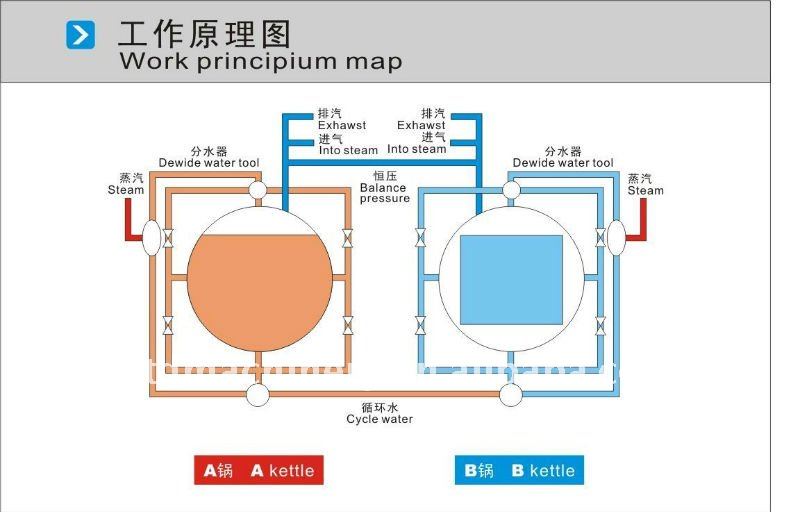

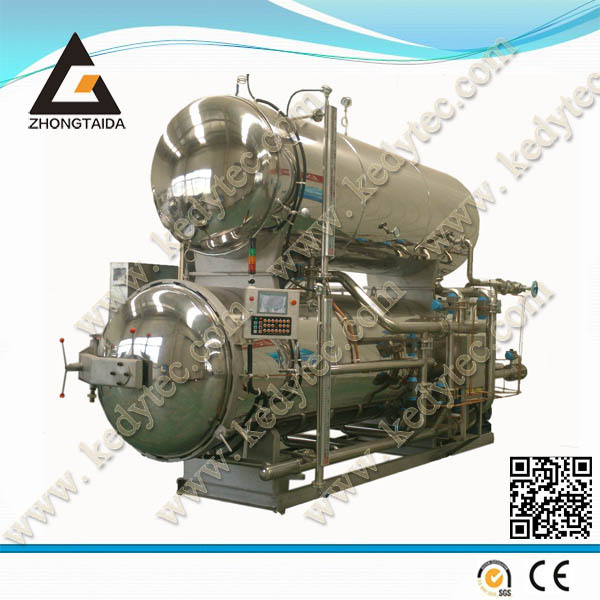

Product Description   Full utilize hot water source and reduce loss, improve efficiency, increase output. The device is composed of two water sterilization pot in parallel connection. Two pots work in turns by exchanging same sterilization water , normally once the food sterilization in one pot finished high temperature process water goes to the second pot directly to reduce process water and heat loss . Efficiency is improved and output is increased. Product Uses   1. Tin can, alum can 2. All kinds of soft pack food, including alum foil bag, transparent bag, vacuum bag, high temperature cooking bag, ect.
Model No Outside measurement(mm) inner diameter(mm) length(mm) capacity(m3) steam consumption(kg/bathch) total installed power(kw) design temperature(°C) test perssure(mpa) designed pressure(mpa)
length width high
PYL1000-1 4100 3400 2200 1000 2200 1.8*2 220 12 145 0.44 0.35
PYL1200-1 4200 4400 2300 1200 2400 3*2 340 24 145 0.44 0.35
PYL1200-2 4500 4400 2300 1200 2700 3.6*2 400 24 145 0.44 0.35
PYL1200-3 4800 4400 2300 1200 3000 4*2 460 24 145 0.44 0.35
PYL1200-4 5400 4400 2300 1200 3600 4.6*2 500 24 145 0.44 0.35

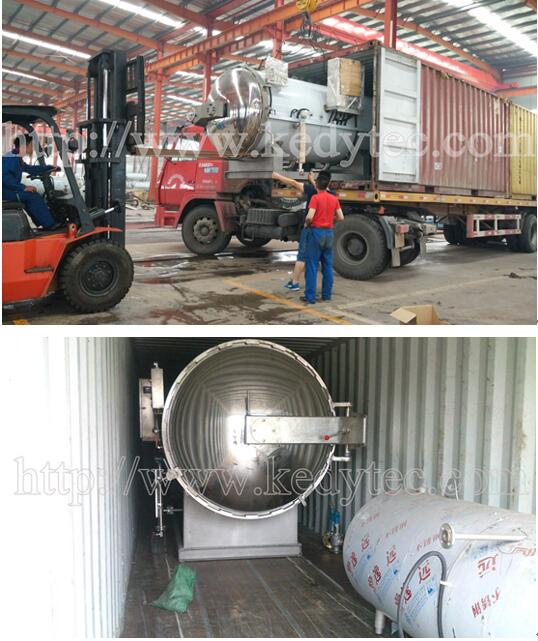

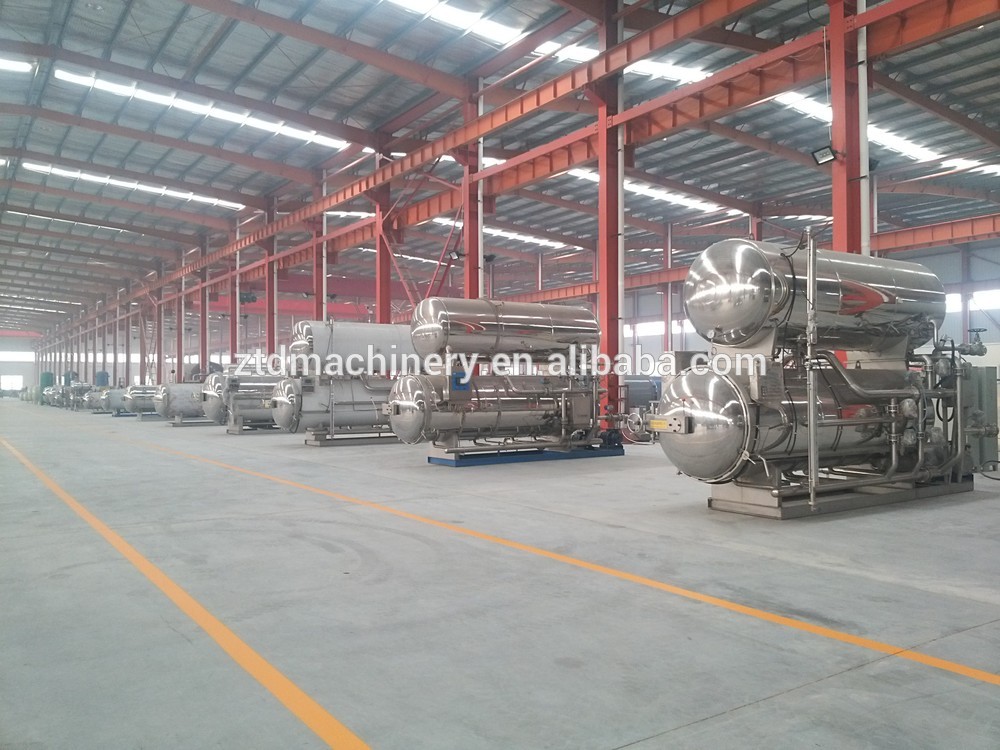

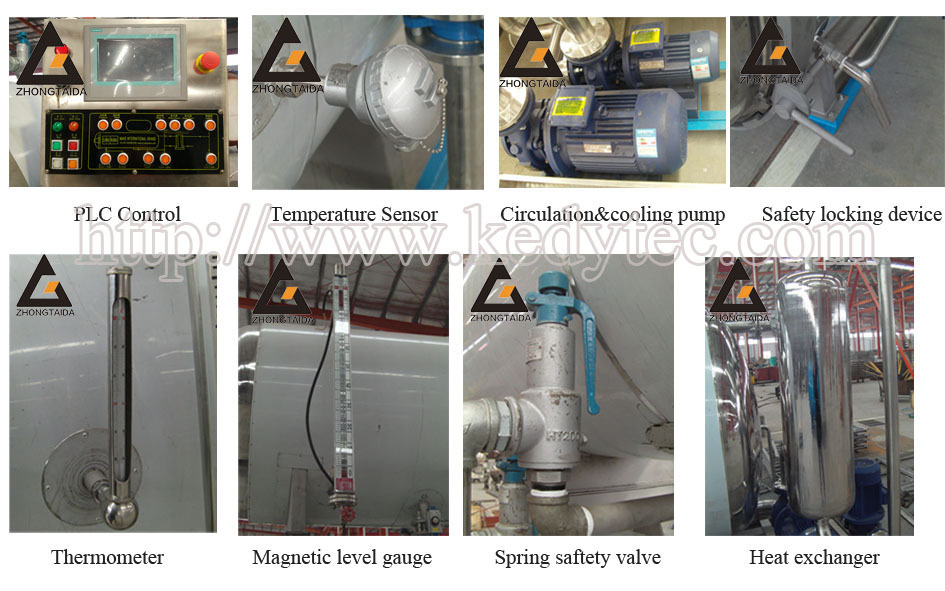

  You can choose the following 2 kind material: 1.The stainless steel SUS304 2.The carbon steel Q235-B Details   Workshop   Packaging & Shipping   Certifications   Company Information       Steam Sterilizing Pot

Contact us if you need more details on food machines. We are ready to answer your questions on packaging, logistics, certification or any other aspects about retort food processing、horizontal retort. If these products fail to match your need, please contact us and we would like to provide relevant information.
