4000L*2 big dimension food sterilizing retort

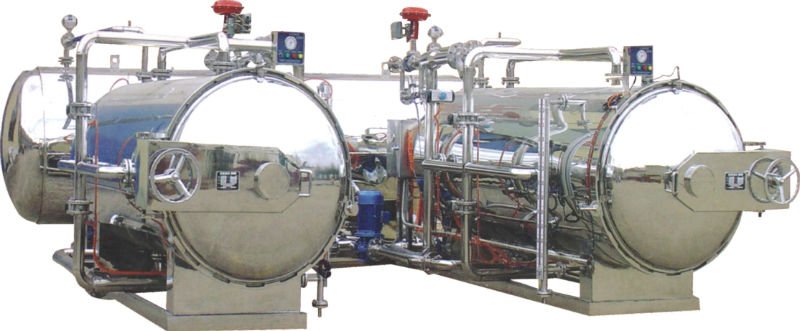

Parallel-pot full automatic autoclave The two pot parallel automatic autoclave’s advantage Full utilize hot water source and reduce loss, improve efficiency, increase output. The overview The device is composed of two water sterilization pot in parallel connection. Two pots work in turns by exchanging same sterilization water , normally once the food sterilization in one pot finished high temperature process water goes to the second pot directly to reduce process water and heat loss . Efficiency is improved and output is increased. Wide application scope: 1. Tin can, alum can 2. All kinds of soft pack food, including alum foil bag, transparent bag, vacuum bag, high temperature cooking bag, ect. The working principle of the autoclave: The size and specification of the sterilizer:

Model No	Outside measurement(mm)			inner diameter(mm)	length(mm)	capacity(m3)	steam consumption(kg/bathch)	total installed power(kw)	design temperature(°C)	test perssure(mpa)	designed pressure(mpa)
	length	width	high
PYL1000-1	4100	3400	2200	1000	2200	1.8*2	220	12	145	0.44	0.35
PYL1200-1	4200	4400	2300	1200	2400	3*2	340	24	145	0.44	0.35
PYL1200-2	4500	4400	2300	1200	2700	3.6*2	400	24	145	0.44	0.35
PYL1200-3	4800	4400	2300	1200	3000	4*2	460	24	145	0.44	0.35
PYL1200-4	5400	4400	2300	1200	3600	4.6*2	500	24	145	0.44	0.35

The newest products: The material: You can choose the following 2 kind material: 1.The stainless steel SUS304 2.The carbon steel Q235-B

Contact us if you need more details on two pots big meat processing sterilizing retort. We are ready to answer your questions on packaging, logistics, certification or any other aspects about cheap water immerse sterilizer、large capacity autoclave. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Retort Sterilizer Autoclave
