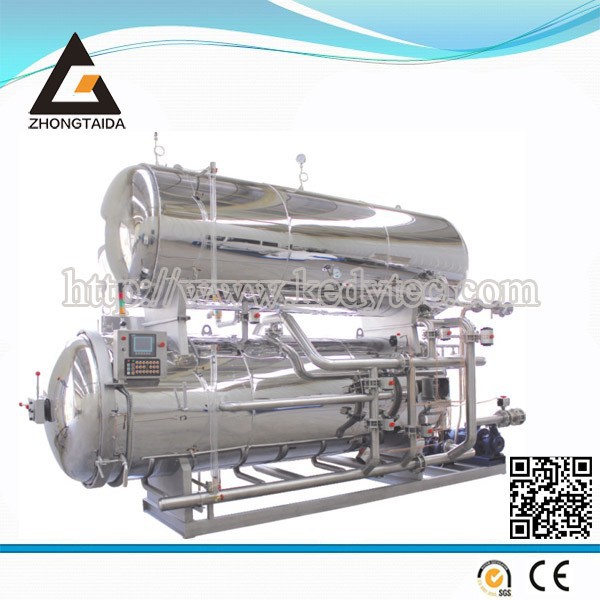

Two Layer Water Immerse Fast Sterilizing Retort For Tin Can Food

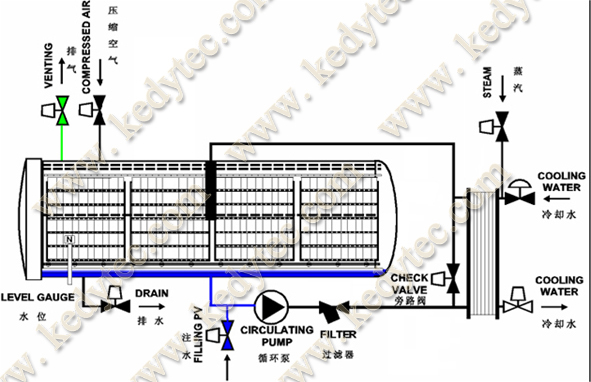

Water immerse autoclave’s feature: 1. Uniform temperature and no blind angle 2. High temperature short time sterilization 3. Higher temperature sterilization, save energy 4. Interchangeable between full-auto control system& manual one 5. Autoclave adopts simulation temperature control system and could set every phase heating mechanism 6. Flexibility: Our factory could design every kind of no-regular product according to different client’s demand and technique requirement 7. Measure F Value; F value display, F value control (Note*: means optional) The working principle: Overview of the water immerse autoclave: Full-auto two-layer immerse autoclave has top& bottom pots. Top one is to save hot water and bottom one for sterilization. After packed food entered the sterilization pot the pre-heated sterilization water from the top pot comes into the bottom sterilization pot and immerse all the food in the pot like people bathing in pool. Then circulating pump force the high temperature water in the pot to recycle regularly. During the running steam continually heats them to the designed temperature to proceed to packed food sterilization purpose. The high temperature water recycles to the top pot after sterilization finished and the coolant water input directly to the bottom pot from outside to finish cooling process. This device process sterilization with recycle of hot water between top & bottom pot. Sterilization technique and process are full automatically controlled to save space, energy& sterilization time and increase output. Suitable for wide application scope: 1. can food: tin can, alum can(example: canned drinks like almond juice, walnut juice, healthy tea, ect) 2. Soft pack: alum foil bag, transparent bag, vacuum bag, high temperature cooking bag, ect. The size and the specification:
The material: You can choose the material according to your request as followings: A: stainless steel SUS304. B: carton steel Q235-B The newest product: Details show Shipping&Packing Certificate Contact us if you need more details on two layer water immerse retort for tin can food. We are ready to answer your questions on packaging, logistics, certification or any other aspects about fast sterilizing large retort、water immerse sterilizer. If these products fail to match your need, please contact us and we would like to provide relevant information.
|Model No||Outside measurement(mm)||inner diameter(mm)||length(mm)||capacity(m3)||thickness of autoclave(mm)||max working pressure(Mpa)||Max working temperature(°C)||Weight(kg)||operating weight(kg)||total installed power(kw)||Voltage(V)|
Product Categories : Retort Sterilizer Autoclave
