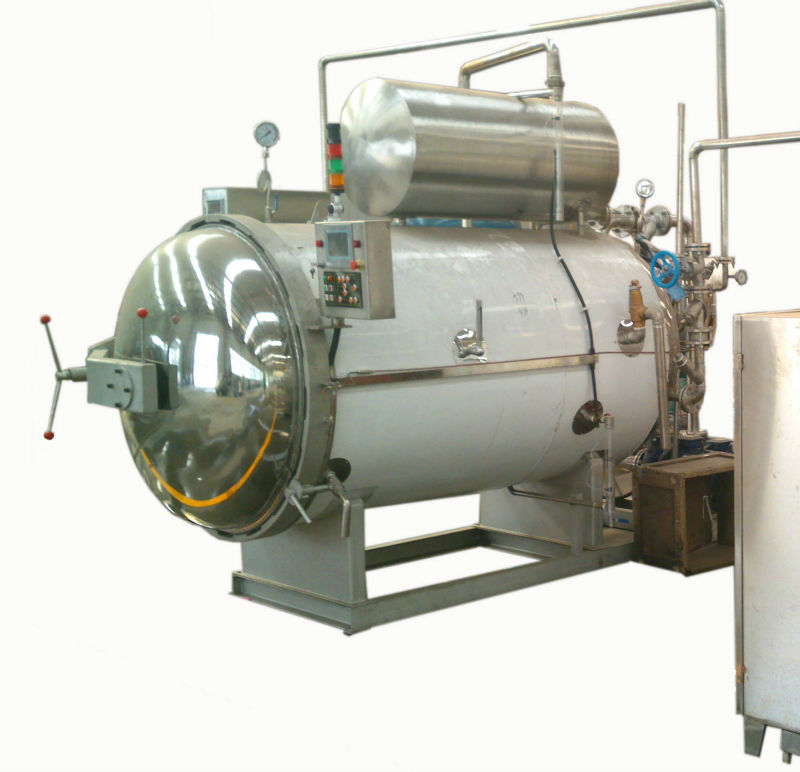

PLJ.10-2.B.3 water spray retort
Product Description
Features: 1.Very stable temperature in the pot A. The continually showering water comes from the nozzles vertically located at the 4 corners of every tray so that the termerature in the pot maintains very phase of the sterilization process. B. As the temperature in the pot is very stable FO value variation & over cooling could be minimized. 2.Direct heating, indirect cooling, no secondary pollution The atomized recycle water is heated directly through steam diffusion pipe, so the temperature rise rapidly. Normally the water temperature in the pot only takes 12 minutes to rise from 20 °C to 121 (°C under 0.5 MPA steam pressure. Cooling down is made by continually recycling the water through the pipe transformer. 3.Temperature rise &drop step by step The temperature could rise and drop in ten phase with computer control. Gentle linearity temperature rise and drop protect the fragile food and glass bottles. The makes complete sterilization and maximum preservation of food taste and colour. Also contribute to the consistency of sterilization effect on the whole batch of product. 4.Soft water sterilization , beautiful clean package surface Coolant water does not enter in the pot and not contact with package, which reduce the surface pollution and save cost.
5.No special requirement on the water coolant It could be city water, underground water or sea water, which saves water source and reduces the cost. 6.Perfect pressure control&suitable for gas pack 7.Control system Siemens touch screen(or mitsubishi touch screen) Non-paper recorder(paper recorder) Imported automatic valve Simulation temperature/Pressure control system:sterilization temperature(0.50C), pressure(0.005MPA) Many sterilization technique in memory for your choice. At most could save 250 sterilization formula. 8.Measure F Value, Display F Value, Control F Value Overview
Applicable to all kinds of heat-resistant package material: 1.Glass container: glass can 2.Metal container: tin can 3.Alum plastic container: PP bottle , HDPE bottle 4.Soft pack: Alum foil bag, transparent bag, Vaccum bag, High temperature cooking bag, ect.
Technical parameters
Product details


Contact us if you need more details on water spray retort. We are ready to answer your questions on packaging, logistics, certification or any other aspects about full automatic autoclave、water spray sterilizer. If these products fail to match your need, please contact us and we would like to provide relevant information.




Model No | Outside measurement(mm) | inner diameter(mm) | length(mm) | capacity(m3) | thickness of autoclave(mm) | max working pressure(Mpa) | Max working temperature(°C) | Weight(kg) | operating weight(kg) | total installed power(kw) | Voltage(V) | ||
length | width | high | |||||||||||
PLJ.10-1.B.3 | 1885 | 1200 | 1458 | 1000 | 950 | 1 | 4 | 0.3 | 147 | 560 | 860 | 3.5 | 380 |
PLJ.10-2.B.3 | 2970 | 1200 | 1458 | 1000 | 1900 | 1.8 | 4 | 0.3 | 147 | 650 | 1250 | 6 | 380 |
PLJ.12-2.B.3 | 3102 | 1500 | 1660 | 1200 | 1900 | 2.6 | 5 | 0.3 | 147 | 860 | 1400 | 6 | 380 |
PLJ.12-3.B.3 | 4100 | 1500 | 1780 | 1200 | 2870 | 3.7 | 5 | 0.3 | 147 | 1200 | 1800 | 11.5 | 380 |
PLJ.12-4.B.3 | 4938 | 1500 | 1660 | 1200 | 3820 | 4.8 | 5 | 0.3 | 147 | 1300 | 2100 | 11.5 | 380 |
PLJ.13-4.B.3 | 4938 | 1600 | 1880 | 1300 | 3820 | 5.7 | 5 | 0.3 | 147 | 1500 | 2300 | 15.5 | 380 |
