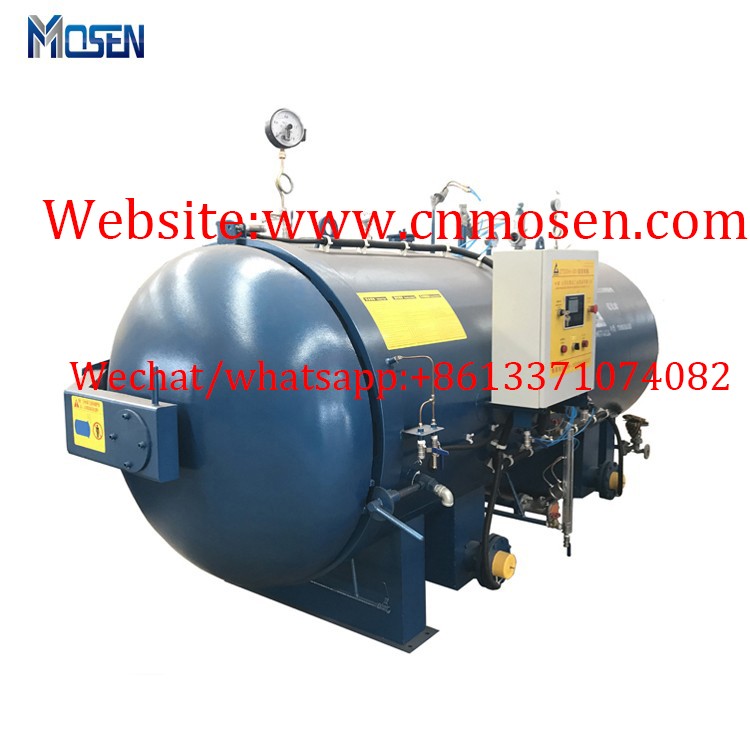

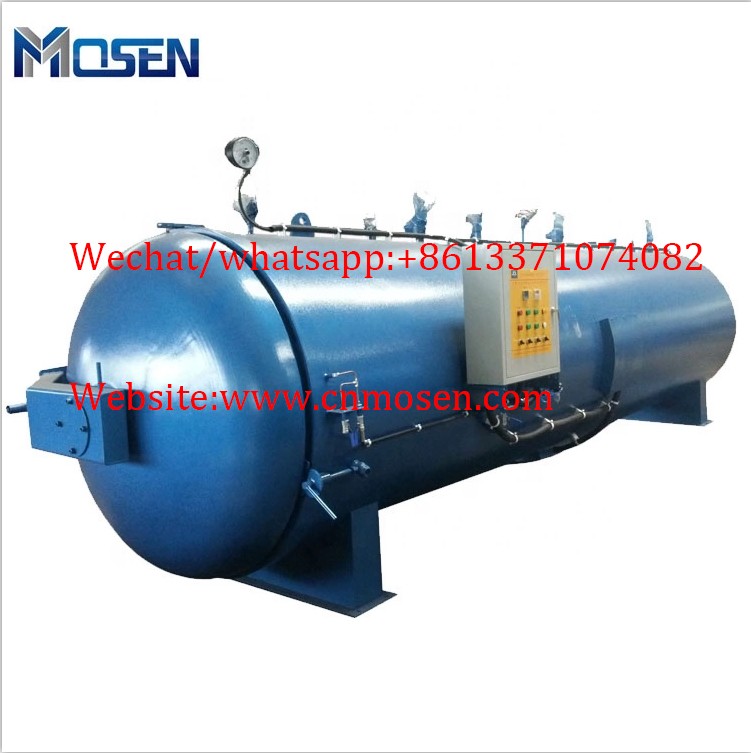

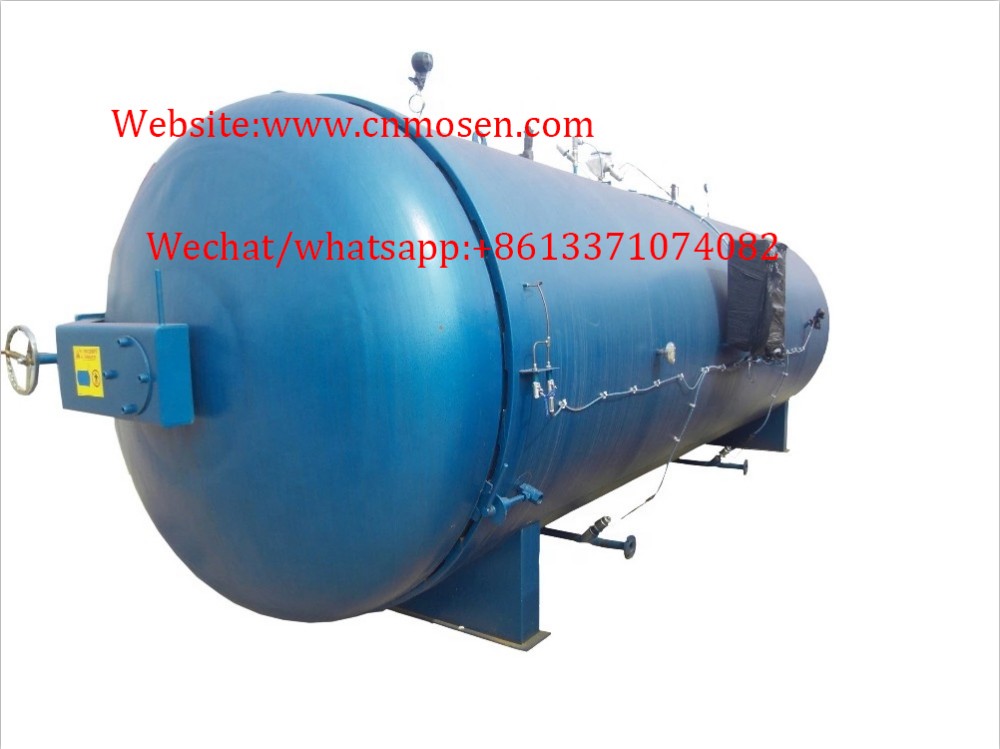

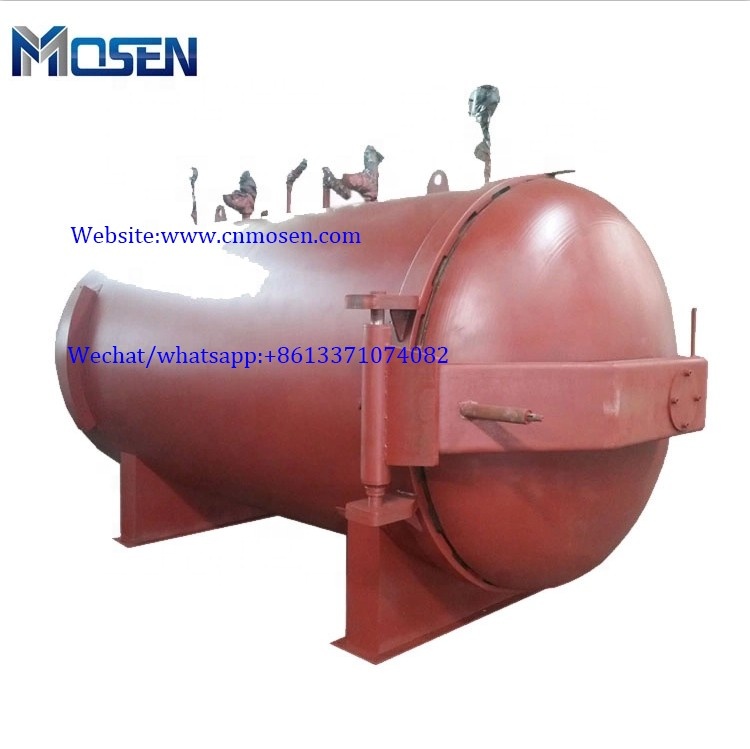

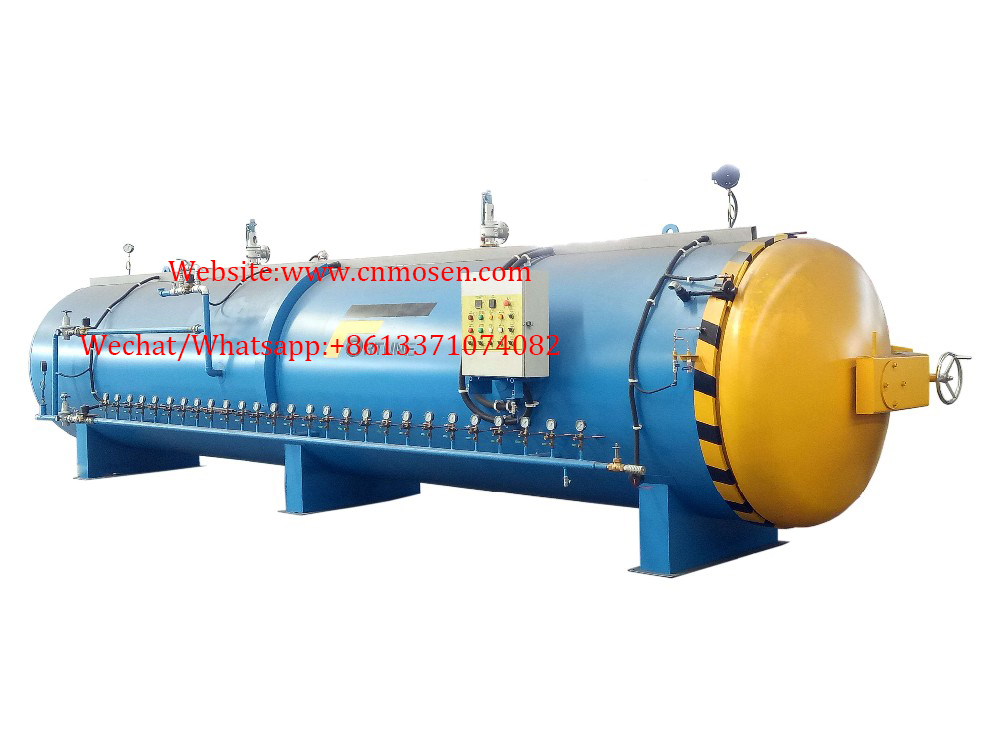

High Quality Autoclave For Rubber Pipe Vulcanization

Product Description

Product Description Product Introduce 1. Several group of heating tube be controled seprately, low energy consumption.  2. Equipment with blower at the end of tank, make heat distribut evenly, temperature can be controled precisely. 3. The pressure and temperature can be pre-setted and pre-adjusted. 4. Using high quality thermal insulation material,which can protect workers and avoid the waste of energy . 5. High temperature silicone seal is used by the vessel door, good seal.  The vulcanization tank for the vulcanization of the rubber roller, generally adopts the direct steam heating vulcanization, the tank does not have the hot air circulation device
   Main Features 1.Designoftank gate.Adopt manual quick open design, rapid, easy and safe.
2. High safety. Six sets of safety interlocks is adopted, includeautomatic pressure safety interlocking,pressure automatic control, manual safety, manual vent valve, high pressure alarm, automatic safety valve. Tank gate will not open as long as there have pressure inside of the chamber, remove potential safety hazard caused by mistake operation.
3. Inflatable seal. It can seal once close doorand the pot inflate, gate cannot open only when pressurereliefed totally, seal ring's service life is more than 1 year, it wil not wear in this period.
4. Good heat preservation effect.Use aluminum silicate rock wool with steel plate support outside,which can ensure heat won't volatilize and shape won't transform, insulation effect can keep 10 years.
5.Automatic control: All main process can finished accurately by PLC control system, include heating process, heat preservation process, vulcanizing process, these process can realized just turn on the switch, which can save labor costs and ensure quality of product.


Product Paraments
Model
Control
Dia(mm)
Len(mm)
MDM
PRE
(Mpa)
 TME
(℃)
F-E10.30


Automatic

1000
3000




Air




0.1-0.85Mpa
120-160℃
F-E15.50
1500
5000
120-160℃
F-E20.80
2000
8000
120-160℃
S-E10.30


Semi-automatic
1000
3000
120-160℃
S-E15.60
1500
5000
120-160℃
S-E20.70
2000
8000
120-160℃

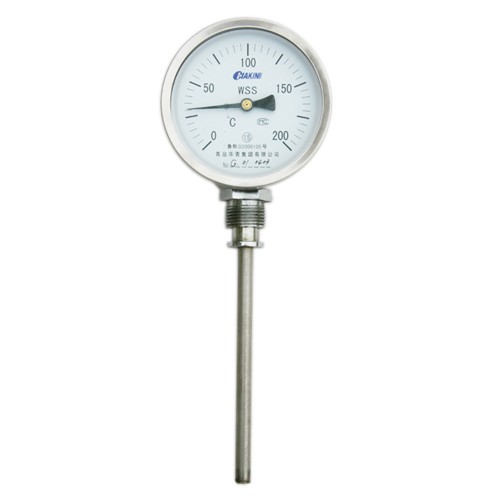

Detailed Images Machine Parts Name: Metallic thermometer Brand: Schneider and Siemens. Original: France and Japan

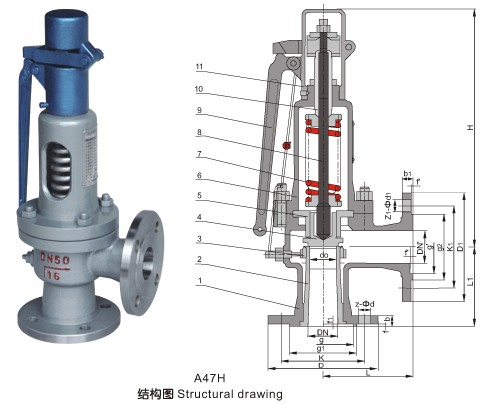

Main Parts Name: Safety-valve
Brand:  Wanneng
Original: Zhejiang
.

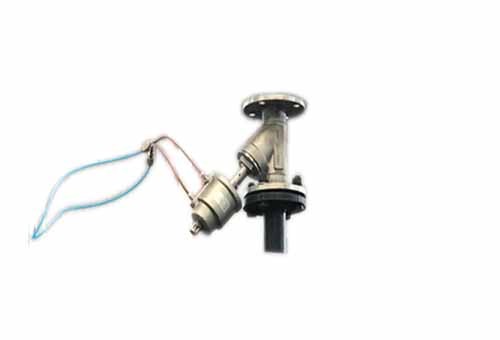

Machine Parts Name: Angle seat valve
Brand: Wanneng
Original: Zhejiang

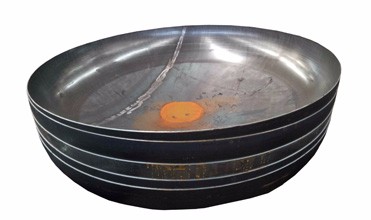

Machine Parts. Name: Autoclave Capped Brand:ZTD Autoclave capped is an indispensable part of the autoclave, and it is the end cap of the autoclave and is a major pressure-bearing part of the autoclave.

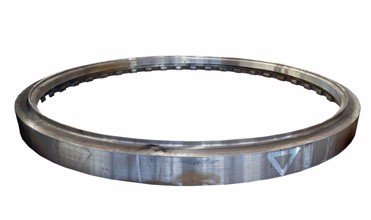

Machine Parts. Name: Flange
Brand:ZTD Connect autoclave capped and autoclave cylinder

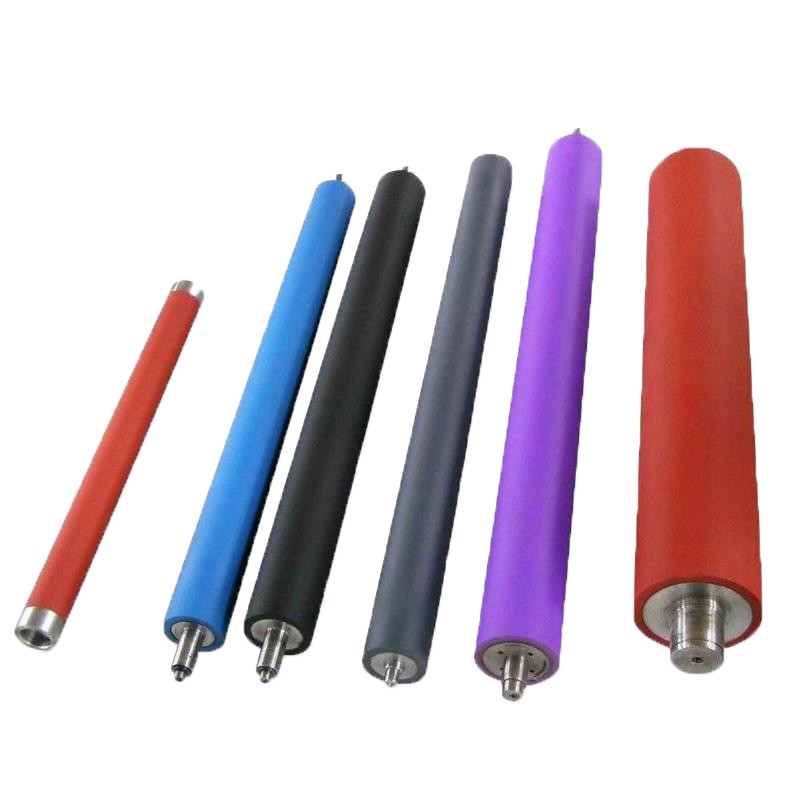

  At present, the vulcanization methods of large and medium-sized rubber roll manufacturers still use vulcanizing tank. The heat sources for vulcanization include steam, hot air and hot water. The main stream is still steam. For hollow core rubber rollers, since the metal core cannot contact water vapor, indirect steam vulcanization is recommended. The time needs to be extended by 1 to 2 times. For special rubber rollers that cannot be vulcanized with a vulcanizing tank, hot water vulcanization is sometimes used.
1.Vulcanizing tank open door: manual door, electric door, pneumatic door, oil pressure door.
2.Sealing method: the rubber tube vulcanization tank USES inflatable sealing ring, the sealing effect is obviously better than the other way, the sealing ring service life is more than one year.
3.Safety chain: the pressure automatic safety chain, manual security chain, completely solved the safety hidden trouble caused by workers' misoperation.
4.Temperature control method: the rubber tube vulcanization tank adopts computer semi-automatic, PLC computer automatic, manual control three kinds of ways.
5.Pressure control method: the rubber tube vulcanization tank adopts the computer semi-automatic, PLC computer automatic, manual control three kinds of ways.
6.Thermal insulation: the rubber tube vulcanization tank adopts double layer external insulation, which is 30% less energy consumption than ordinary thermal insulation.

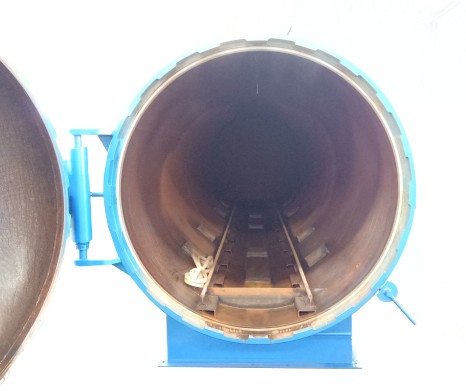

7.The way of carrying: the two rails in the canister of vulcanized tube, and the national standard 36# guide steel.

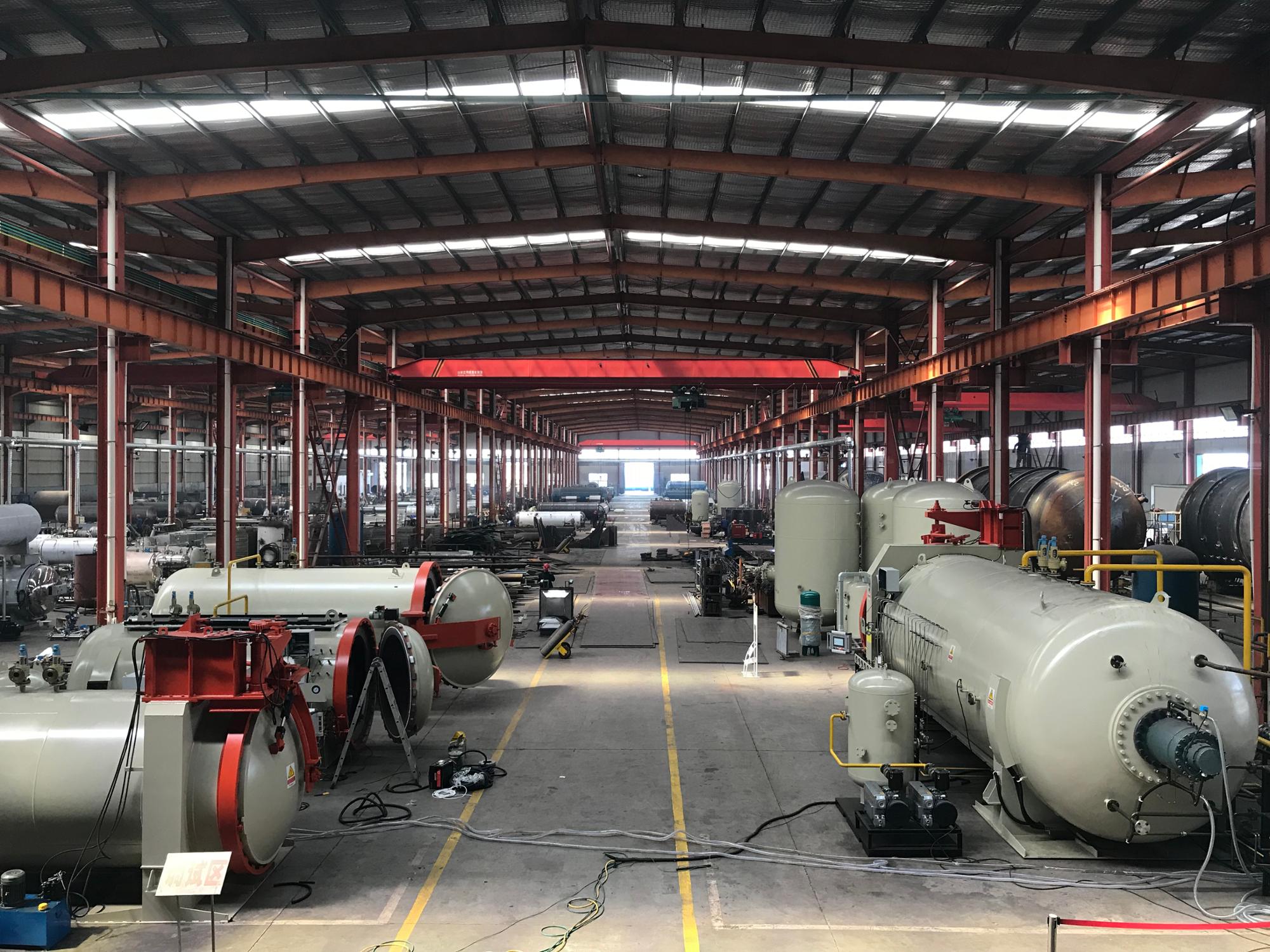

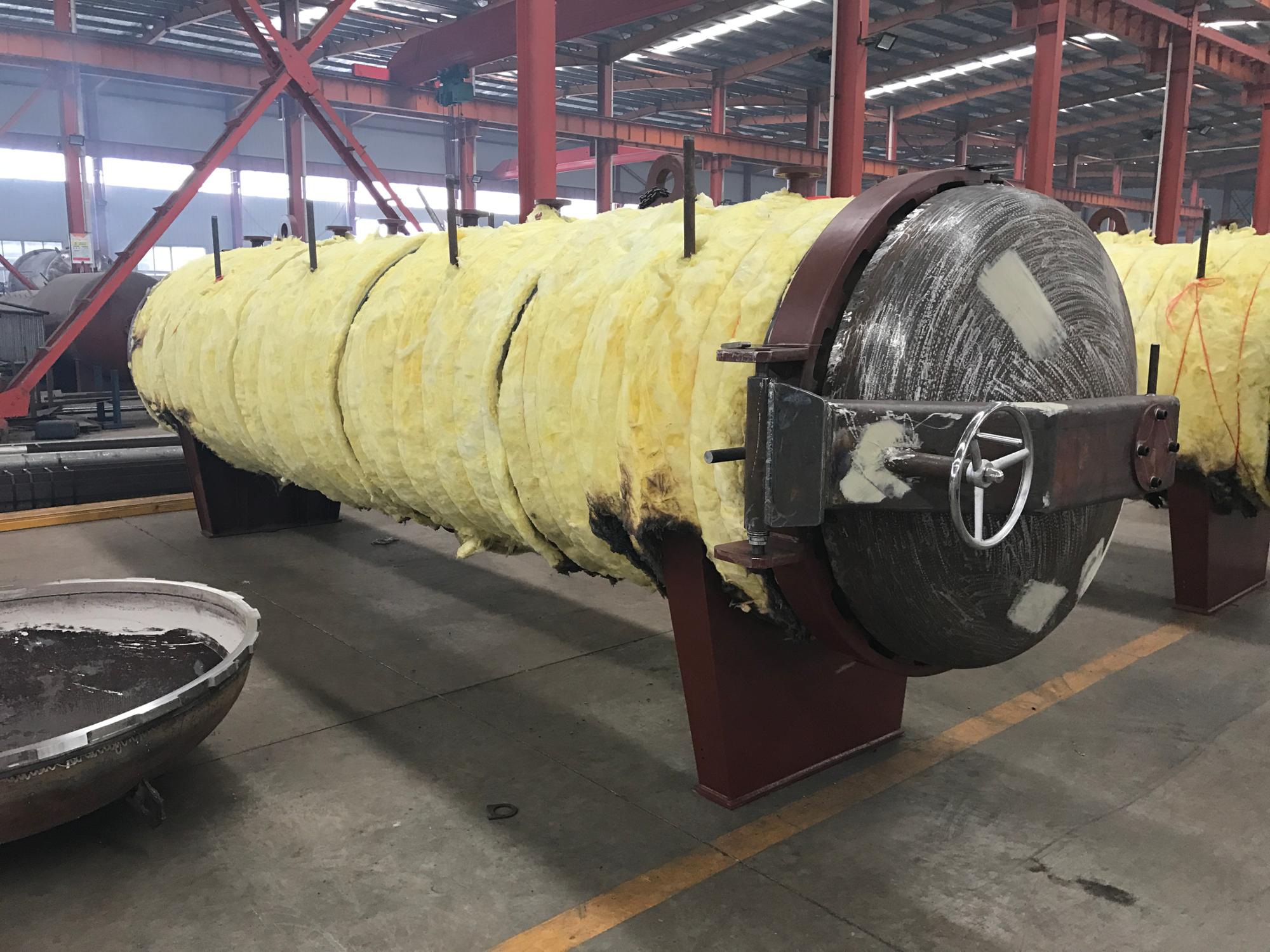

Workshop A corner of the workshop.

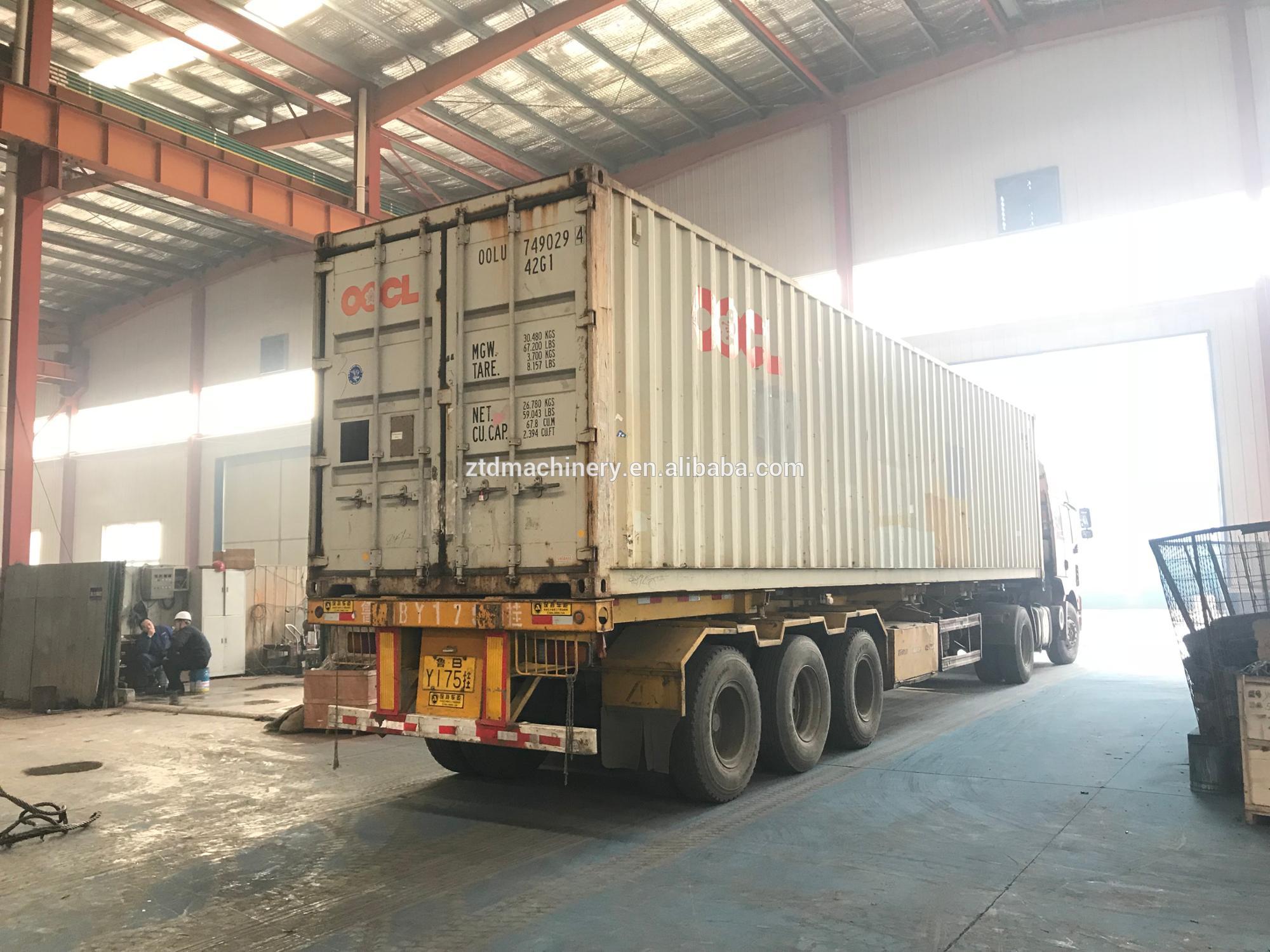

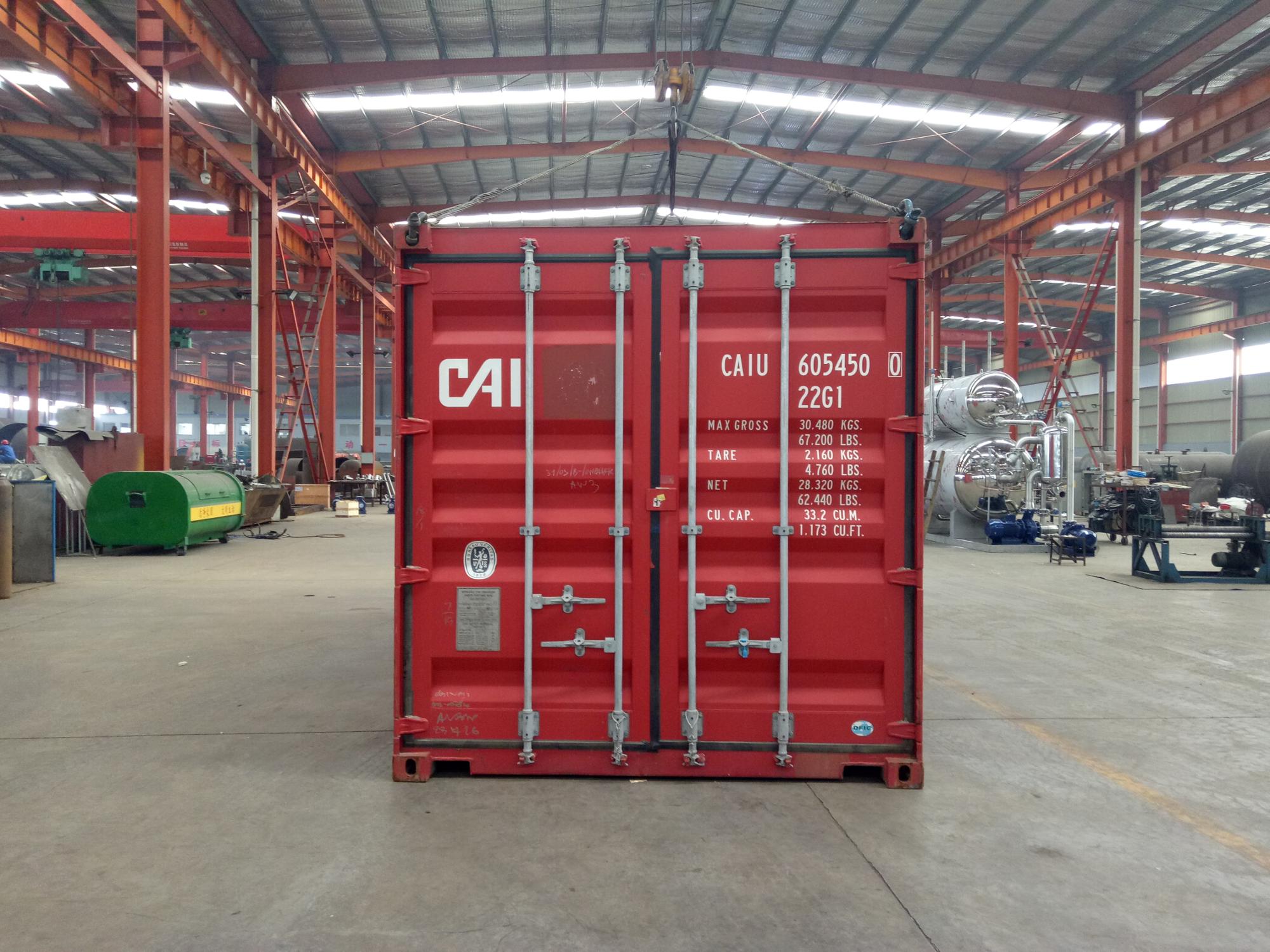

Packing & Delivery Fix the equipment into the container and then deliver it to the port.
Certifications We have various safety certifications, and we also provide ASME certification for countries in need.
Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas.
Our Company

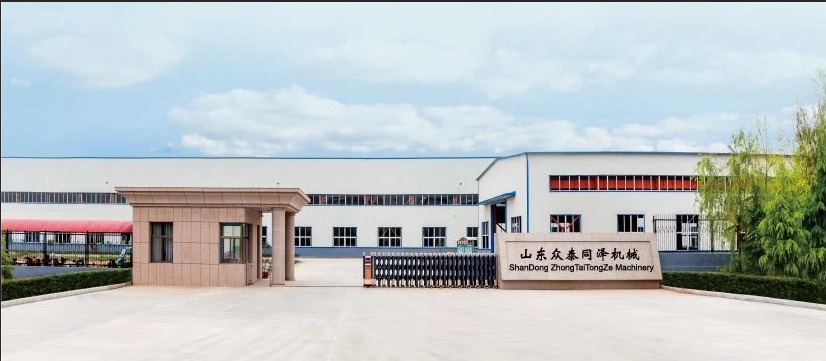

  MOSEN INDUSTRY consist of Shandong ZhongtaiTongze Machinery Co., Ltd. & Qingdao Mosen Industry Co., Ltd. Product focus on food sterilize retort, cook kettles, autoclave rubber vulcanization, composite curing autoclave and wood impregnation tank. Autoclaves design on differ directives of GB150-2011,ASME,CE,DOSH even any other code from different countries.

This two brother companies work on domestic and foreign market during passed years .Besides food sterilization retort autoclave machine ,our autoclave take about 25% in China domestic market of rubber cure autoclave, Exporting machine reach to America, British, India, Egypt, Russia, Thailand, Korea, Japan, Indonesia, Vietnam, Malaysia etc.
