Vulcanization Rubber Shoe Curing Autoclave

Product Description

TECHNOLOGY DETAILS 1.Cylindrical body and dished end be made of carbon steel.
2. Steam indirct go into autoclave from diffusion tube, pneumatic angle seat valve controls steam in and out automatically.
3. Holes regularly arranged on steaming tube, temperature keep constant in autoclave.
4. Autoclave be heat up automatically after setting procedures,alarm when it finish vulcanizing.
5.Quik-lock type design,a special feature in autoclaves give practically 100% safe doors,these doors have fail-safe measure ensuring door opening only at safe pressure limits.
6. Multiple safety interlocks ensure safety during process. Door can’t be opened if there is pressure in vulcanizer.
7. Size can be designed under customers’ requirement.   DESCRIPTION
Model DL1.2-03B.3
Cylindrical Body Size(mm) 1200*3000
Volume(m3) 3.39
Design Temperature(°C) 161
Operating Temperature(°C) 121
Design Pressure(Mpa) 0.65
Working Pressure(Mpa) 0.4
Working Medium Steam
Steam Inlet Diameter(mm) DN40-50
Exhaust Diameter(mm) DN32-40
Water Outlet Pipe Diameter(mm) DN40-50
Safe Valve Diameter(mm) DN25-50
Compressed Air Diameter(mm) DN15-20
Adjust Mouth Diameter(mm) DN25-40
Overall Dimension
mm(L*W*H)
4000*2000*2400
  MORE REFERENCE
Model No. Control Methods Inner Diameter
(mm)
Length
(mm)
Heating Methods Design Pressure
(Mpa)
Design Temperature
(°C)
DN1.2-3B.3 Semi-automatic 1200 3000 Steam&Air 0.65 161
DN2.5-6B.3 Semi-automatic 2500 6000 0.65 161
DN02-6B.3 Semi-automatic 2000 6000 0.65

161

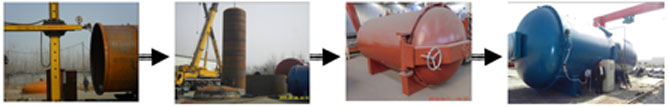

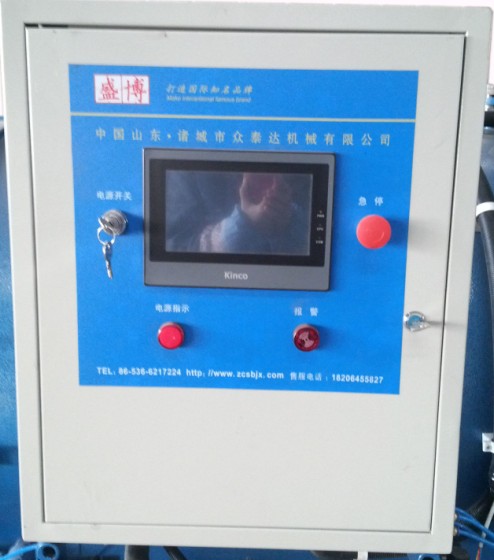

  APPLIED SCOPE Widely used for rubber hose,roller,textile industry,wood treatment,etc. IMAGINES 1.STEAM DIFFUSION TUBE Steam heating autoclave directly 2.SEMI-AUTOMATIC CONTROL BOX Electric control automatical 3.FULL-AUTOMATIC CONTROL BOX PLC control system,Touch screen view pannel   AUTOCLAVE FABRICATION SCENE 1.Carbon steel rolled 2.Connection with flange 3.Spray anti-rust primer paint 4.Finished-product  air pressure tank, asme pressure vessel, air tank, autoclave, autoclave brands, autoclave chamber, autoclave china, autoclave equipment, autoclave for rubber vulcanization, autoclave for sale, autoclave horizontal industrial, autoclave industrial, autoclave machine, autoclave machine price, autoclave manufacturers, autoclave price, autoclave pressure vessel, autoclave reactor, autoclave vertical, autoclaves horizontal, cable vulcanizing machine, chamber, cheap autoclave, chemical reaction autoclave, conveyor belt vulcanizing machine, curing machine, double door autoclave, heat pressure machine, high pressure autoclave, high pressure machine, high pressure tank, high pressure oven, high pressure reaction vessels, high pressure reactor, high pressure vessel, high pressure water spray, high temperature autoclave, high temperature machine, high temperature oven, horizontal autoclave, horizontal pressure vessel, hose machines, hot vulcanizing machine, industrial autoclave, industrial autoclave machine, industrial autoclave sterilizer, industrial vessels, inner tube vulcanizing machine, lab pressure vessel, large autoclave, mushroom sterilizer, oven autoclave, pressure machine, pressure pot autoclave, pressure steam autoclave machine, pressure tank, pressure vessel, pressure vessel price, reaction vessel, reactor autoclave, reactor pressure vessel, reactor rubber, reactor tank, reactor vessel, rubber boots machine, rubber chamber, rubber press machine, rubber processing machinery, rubber roller machine, rubber shoes machine, rubber vulcanizing, rubber vulcanizing machine, rubber vulcanizing press, shoe vulcanizing machine, small autoclave, small pressure vessels, small size autoclave, stainless steel autoclave, stainless steel pressure vessel, steam sterilizer autoclave, steaming autoclave, steel vessel, used autoclave, used industrial autoclave, vacuum autoclave, vessel for sale, vessel machine, vessel tank, vulcanization, vulcanized rubber, vulcanized rubber products, vulcanized rubber roller, vulcanizing equipment, vulcanizing machine, vulcanizing press, vulcanizing tools, water pressure vessel, wood drying machine

Contact us if you need more details on vulcanization rubber autoclave. We are ready to answer your questions on packaging, logistics, certification or any other aspects about rubber curing autoclave、autoclave for shoe vulcanization. If these products fail to match your need, please contact us and we would like to provide relevant information.
