Hot Air Rubber Curing Tank

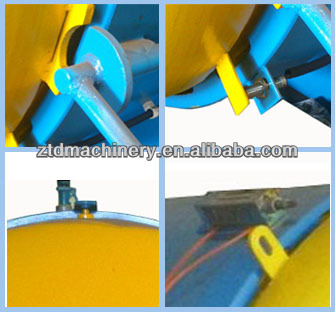

OVERVIEW   1. Electric heating air. 2. Evenly heat distribution. 3. Pre-set and pre-adjust tem  & pressure. 4. High quality thermal insulation material 5. High temperature silicone seal ring and flange to seal       APPLICATION    Widely used for rubber product: natural, nitrile, neoprene, butyl, polyurethane, silicone, carbon fiber rubber Rubber product vulcanizing: rubber covered roller, hose, shoes, cable, LCD, old tyre, Wood drying, wood impregnation, Rubber precure, tread precure Textile steaming,     DETIALED TECHNOLOGY  1.Tank gate             Manual, electrical or pneumatic opening  2. High safety                 Six sets of safety interlocks is adopted. 3. Inflatable seal             Good sealed, no leckage. 4. Heat preservation       Insulation layer reduce heat lost  5. Automatic                  Industrial computer control, PLC system, running automatic 6. Air blower                 To make heat distribute evenly 7. View panel                Display running state, 8. Recorder                   Paper recorder or digital recorder 9. Alarm                       Alarm automatic after finish working or stoppage happen                          SAFETY INTERLOCK                             AUTOMATIC CONTROL BOX                     PUEUMATIC OPEN GATE                                      ELECTRICAL OPEN   Technical parameters

MOLD	CONTROL	POWER	DIA (mm)	LEN (mm)	MDM	PRE (Mpa)	TEM (°C)
DL1504A.3	Automatic	ELECTRIC	1500	4,000	Air	0.15~0.65	120~310
DL0206A.3			2000	6,000			120~310
DL0304A.3			3000	4,000			120~310
DL0410A.3			4000	10,000			120~310
DL0509A.3			5000	9,000			120~310
DL0610A.3			6000	10,000			120`310
RELATED TYPE:
DL10-03B.3 DL15-05B.3 DL20-06B.3   DL30-08B.3     DL40-05B.3 DL60-07B.1     DL70-20B.1     DL80-50B.1    DL80-75B.1     DL90-100B.1 DL10-03B.2     DL10-05B.2     DL15-07B.2     DL20-08A.2     DL20-10A.2

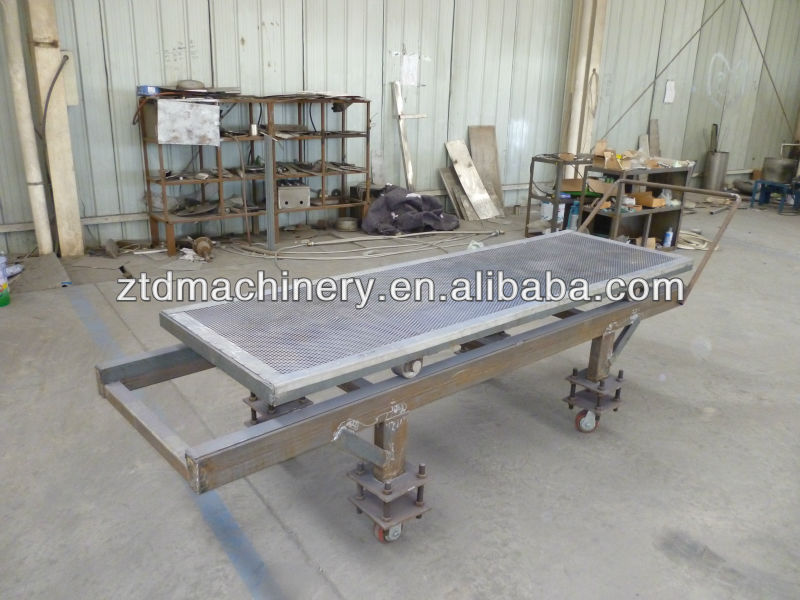

  IMAGE   High Temperature Resistant Anti-rust Paint   Shipping Scene   Air Blower   Convey Trolly   Wood Drying   Product List   Certification Hot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing TankHot Air Rubber Curing Tank

Contact us if you need more details on Rubber Curing Tank. We are ready to answer your questions on packaging, logistics, certification or any other aspects about pressure testing chamber、gas test chamber. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Rubber Vulcanize Autoclave
