Home > Products > Rubber Vulcanize Autoclave > Automatic Rubber Test Chamber

Automatic Rubber Test Chamber

Product Description

Product Overview Autoclave use for processing rubber or other product by high temperature and high pressure to make them get a stronger performance and prolong their service life. When equipment working, it’s a sealed pressure vessel. During the whole process, machine running automatic or semi-automatic, it was controlled by cabinet box   Automatic Rubber Test Chamber Applied Product 1. Rubber product: make raw rubber product become more durable. Including rubber shoes, rubber roller, rubber pipe, cable and etc 2. Textile steaming: Steam the textile with steam. 3. Composited material: Composited autoclave can process carbon fiber material or other composited material into the product which fit the customer’s demand. Such as plane wing, aircraft, missiles, satellites and space shuttle, such as the airplane cabin door, fairing, airborne radar cover, the plane bracket, empennage. 4. Lamination glass: make all glass slice stick together by heating, pressing and cooling. Toughened glass, perspex, security glass, laminated acoustical glass, enameled, tempered Glass. 5. Fly ash brick manufacture, 6. Animal body bio-safety disposal 7. Tire retreading: truck tyre, auto tyre, tractor tyre and OTR tyre     Automatic Rubber Test Chamber Features: 1. Material: Carbon steel Q345R, thickness is depend on design pressure of the autocalve 2. Main component: cylinder, cover, saddle, arm, control box 3. Heating type: electric heating air, steam heating directly, steam heating indirectly, thermal oil, far infrared heating 4. Control mode: Automatic (with PLC system), semi-automatic 5. Door opening: manual, pneumatic open system, hydraulic open system, mechanical open system. 6. Four to six sets safety interlocks ensure autoclave running safely      Automatic Rubber Test Chamber Hot Type



E-DL15.04B.3

E-DL02.07B.3

S-DL12.04B.2

S-DL80.50B.2

O-DL15.06B.2

Heating

electric

electric

steam

steam

thermal oil

Control

automatic

automatic

semi-automatic

semi-automatic

semi-automatic

Diameter

1500mm

2000mm

1200mm

800mm

1500mm

Length

4000mm

7000mm

4000mm

50000mm

6000mm

Material

Q345R

Q345R

Q345R

Q345R

Q345R

Working temperature

85~191

85~191

100~141

100~141

100~190

Working pressure

0.1~0.65Mpa

0.1~0.65Mpa

0.1~0.35Mpa

0.1~0.35Mpa

0.1~0.65Mpa

Media

Hot Air

Hot Air

Steam/air

Steam/air

Hot Air

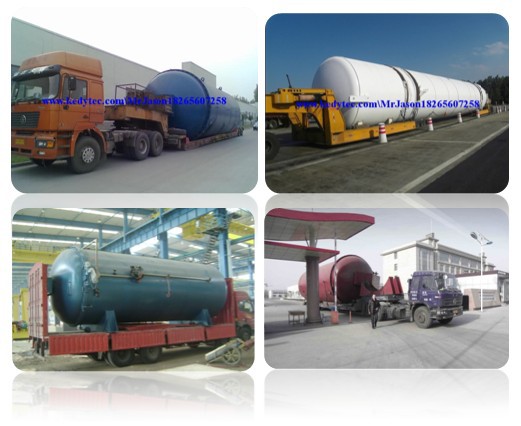

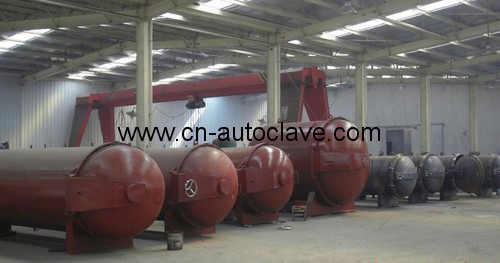

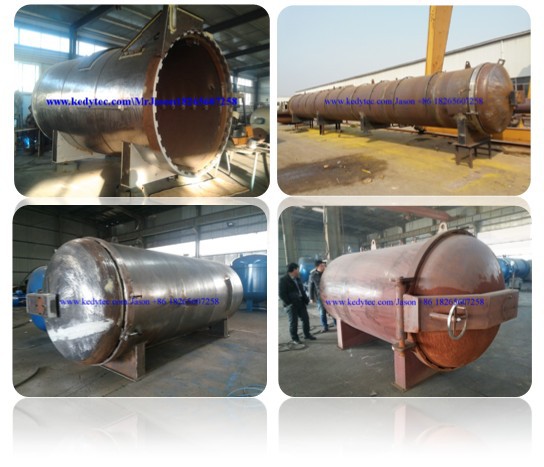

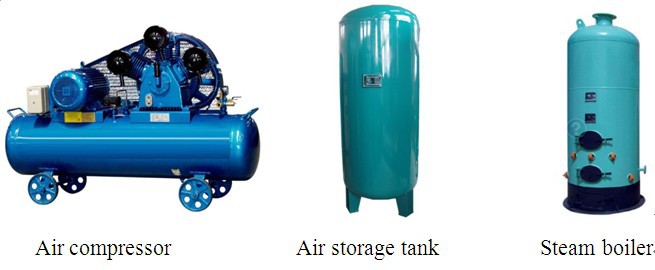

  Automatic Rubber Test Chamber Accessory 1. Air compressor: generating compressed air 2. Air storage tank: To store compressed air 3. Steam boiler: To generate steam for autoclave (only for steam heating autoclave) 4. Bridge or trolley, shelf.   Automatic Rubber Test Chamber Factory Photos
  Automatic Rubber Test Chamber   Automatic Rubber Test Chamber   Automatic Rubber Test Chamber   Automatic Rubber Test Chamber

Contact us if you need more details on Rubber Test Chamber. We are ready to answer your questions on packaging, logistics, certification or any other aspects about pressure chamber、pressure testing chamber. If these products fail to match your need, please contact us and we would like to provide relevant information.
