Find Rubber Vulcanize Autoclave, High Quality Rubber Vulcanize Autoclave, Rubber Vulcanize Autoclave Details on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.

Home > Products > Rubber Vulcanize Autoclave > Electric Heating Vulcanization Autoclave Equipment

Electric Heating Vulcanization Autoclave Equipment

Product Description

BRIEF Rubber autoclave is important vulcanizing equipment in rubber process. It’s widely used for rubber products, cable, textile, chemical, etc. Many kinds of types can be supplied according to heating methods. Meanwhile, we’d like to recommend suitable type under customers’ requirements. Electric autoclaves, with self contained heating and high velocity circulation systems which provide rapid and uniform heat up at high thermal efficiency.   SPECIFICATION
Model DL1.2-02B.3
Cylindrical Body Size(mm) 1200*2000
Volume(m3) 2.26
Design Temperature(°C) 161
Operating Temperature(°C) 121
Design Pressure(Mpa) 0.65
Working Pressure(Mpa) 0.4
Working Medium Air
Steam Inlet Diameter(mm) DN40-50
Exhaust Diameter(mm) DN32-40
Water Outlet Pipe Diameter(mm) DN40-50
Safe Valve Diameter(mm) DN25-50
Compressed Air Diameter(mm) DN15-20
Adjust Mouth Diameter(mm) DN25-40
Overall Dimension
mm(L*W*H)
3500*2000*2400
High Quality Autoclave Equipment
APPLIED SCOPE 1. Rubber products: hose, roller, shoes, etc. 2. Textile industry: printing and dyeing 3. Wood treatment for impregnation 4. Mushroom sterilization   MORE REFERENCE
Model No. Control Methods Inner Diameter
(mm)
Length
(mm)
Heating Methods Design Pressure
(Mpa)
Design Temperature
(°C)
DN1.2-2.5B.3 Semi-automatic 1200 2500 Steam&Air&Oil 0.65 161
DN1.2-03B.3 Semi-automatic 1200 3000 0.65 161
DN02-06B.3 Semi-automatic 2000 6000 0.65 161
Size can be designed under customers' requirement. High Quality Autoclave Equipment
TECHNOLOGY DETAILS 1. Sealing method of door:adpot inflatable seals.
2. Heating fast&constant temperature,air is circluted by fan.
3. Wind board avoid products touch heat exchanger directly.
4. Multiple safety interlocks ensure safety during process.
5. Rock wool filled in insolution layer to keep heat saving.

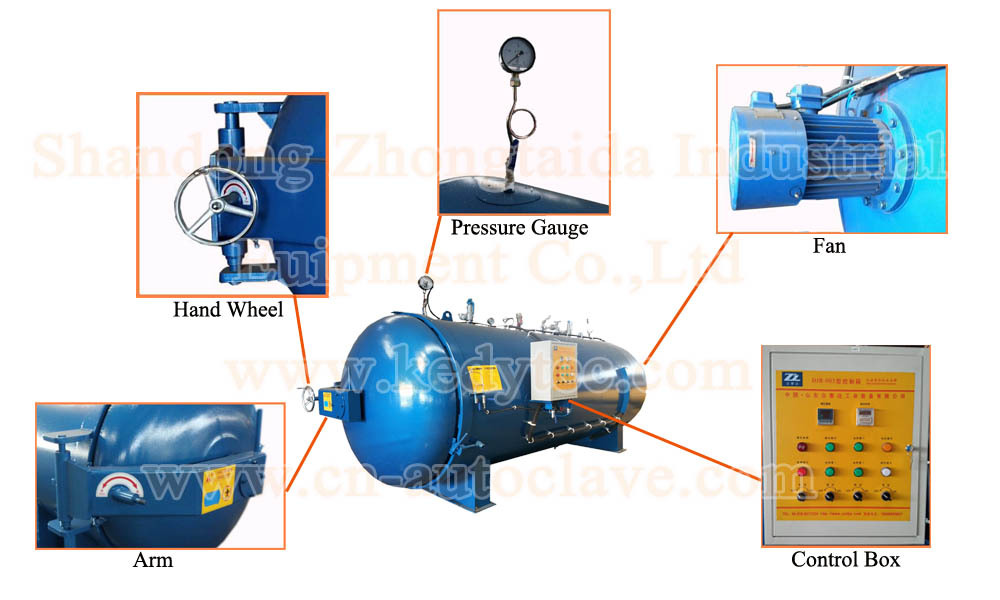

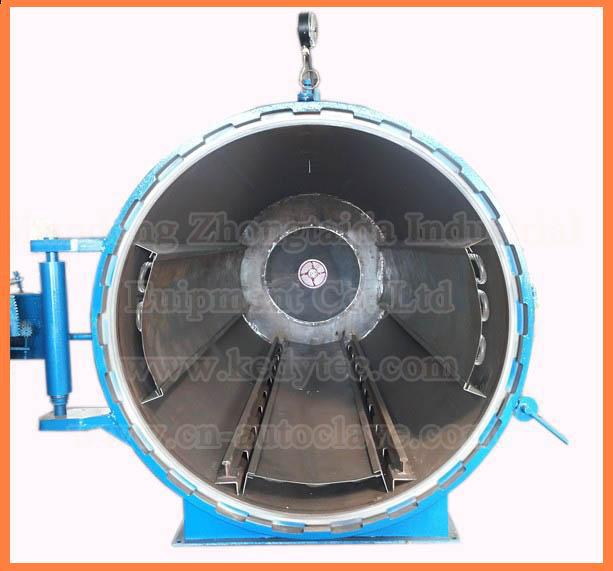

6. High temperature accuracy,pessure controlled automatically.   PRODUCTION DETAILS SHOW 1. AUTOCLAVE INSIDE   Electric heating tube: adopt indirect heating type with medium is air. Rubber products can’t directly touch with heating tube through wind board. Motor fan is equipped at the end of autoclave to ensure products heated evenly.     2. OTHER SECTIONS   2.1. Handle Wheel: Manual method, firstly need to rotate handle when close door, then adopt multiple safety interlocks to ensure safety during vulcanizing process.   2.2. Arm: Used to connect front door with cylinder body of vulcanization equipment. It makes door keep stable.   2.3. Pressure Gauge: Measure and indicate the pressure inside autoclave, testing ability is more sensitive. Please add pressure slowly up to setting value in vulcanizing, otherwise it damages gauge easily if overload pressure.   2.4. Control Box: Buttons control method, adopt advanced Schneider relay and electric appliance fittings of famous brand in China. We can also supply touch screen view panel of Siemens if customers choose full-automatic machinery. 2.5. Fan: Motor drives the fan rotating circularly to keep temperature uniform inside autoclave. Heating exchangers are surrounded by wind board to avoid touch vulcanizing products directly.     High Quality Autoclave Equipment

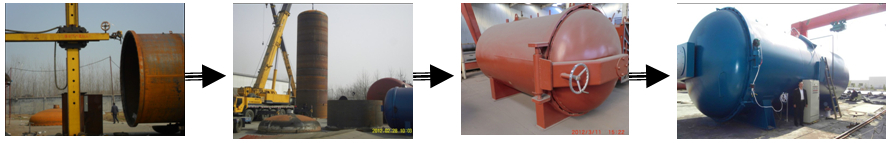

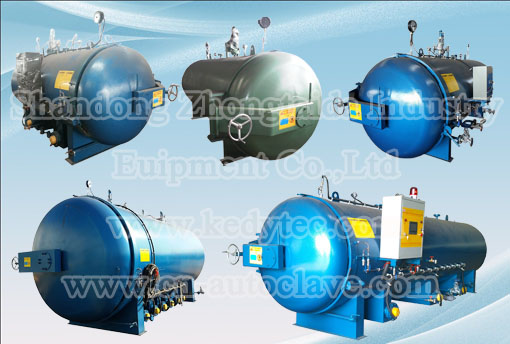

MORE PRODUCTS Different sizes for reference   AUTOCLAVE FABRICATION SCENE 1. Carbon steel rolled 2. Connection with flange 3. Spray anti-rust primer paint 4. Finished-product steaming autoclave,autoclave for sale, industrial autoclave, autoclave industrial, cheap autoclave, autoclave class b, autoclave china, used industrial autoclave, used autoclave, autoclave machine price, industrial autoclave prices, high pressure reactor autoclave, autoclave for rubber, autoclave for rubber vulcanization, autoclave vertical, industrial steam autoclave, autoclave basket, autoclave reactor, sturdy autoclave, autoclave manufacturers, vulcanizing autoclave, oven autoclave, autoclave brands, double door autoclave, autoclave door, electrical autoclave, autoclave used, autoclave function, high pressure autoclave, autoclave pressure vessel, sale used autoclave, autoclave for wood, horizontal autoclave, autoclave manufacturers in china, autoclave rubber seal, brand autoclave, industrial autoclave for wood, Wood Autoclave, chemical reaction autoclave, manual autoclave, rubber autoclave, small size autoclave, used autoclave machine, automatic autoclave, industrial autoclave machine, used steam autoclave, autoclave for wood sterilization, second hand large autoclave, horizontal steam sterilizer / autoclave, autoclave supplier, heat resistant autoclave, used autoclave industrial, advantage of autoclave, large steam autoclave, autoclave machine for sale, autoclave for rubber hose, autoclave b class, autoclave horizontal industrial, commercial autoclave, pressure autoclave, hot air autoclave, autoclave wood, steaming autoclave,autoclave for sale, industrial autoclave, autoclave industrial, cheap autoclave, autoclave class b, autoclave china, used industrial autoclave, used autoclave, autoclave machine price, industrial autoclave prices, high pressure reactor autoclave, autoclave for rubber, autoclave for rubber vulcanization, autoclave vertical, industrial steam autoclave, autoclave basket, autoclave reactor, sturdy autoclave, autoclave manufacturers, vulcanizing autoclave, oven autoclave, autoclave brands, double door autoclave, autoclave door, electrical autoclave, autoclave used, autoclave function, high pressure autoclave, autoclave pressure vessel, sale used autoclave, autoclave for wood, horizontal autoclave, autoclave manufacturers in china, autoclave rubber seal, brand autoclave, industrial autoclave for wood, wood autoclave, chemical reaction autoclave, manual autoclave, rubber autoclave, small size autoclave, used autoclave machine, automatic autoclave, industrial autoclave machine, used steam autoclave, autoclave for wood sterilization, second hand large autoclave, horizontal steam sterilizer / autoclave, autoclave supplier, heat resistant autoclave, used autoclave industrial, advantage of autoclave, large steam autoclave, autoclave machine for sale, autoclave for rubber hose, autoclave b class, autoclave horizontal industrial, commercial autoclave, pressure autoclave, hot air autoclave, autoclave wood,

Contact us if you need more details on autoclave equipment. We are ready to answer your questions on packaging, logistics, certification or any other aspects about tyre vulcanizing equipment、belt vulcanizing equipment. If these products fail to match your need, please contact us and we would like to provide relevant information.
