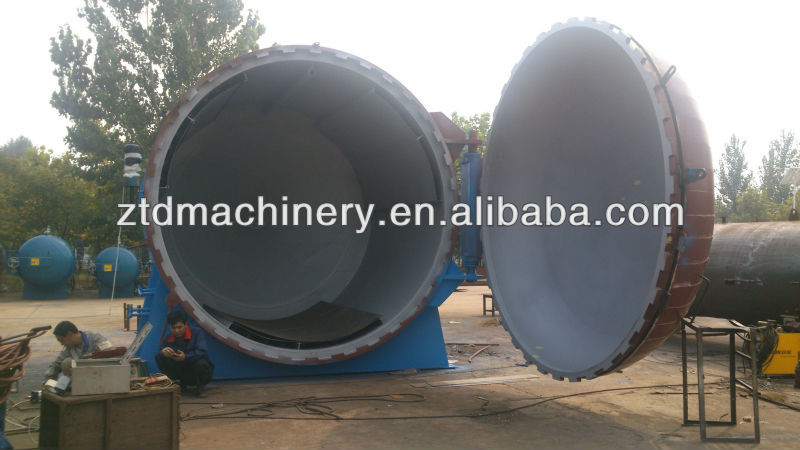

Latest Rubber Vulcanizing Pressure Vessel Tank Manufacture Company

Vulcanizing rubber shoes Equipment Parameter Specification:16pcs Curing Chamber for Truck Tyre
Range of Tyre Size:Within Size of 12.00-24 Truck and Passage car Tyre
Operating Worker No.:Min. 5 Staff(8 staff better)
Workshop Area:Min. 350m2
Max Service Power:100kw(Complete working)
Curing Time:220Minutes/per shift(Timing at 112°C)
Max Daily Work Shift:4ps/day
Max Daily Output:64pcs/day for within ruled max size tyre
Min Required Power:380V,50HZ.,80KW
Min Required Air Supply:0.8Mpa
Min Air Compressor:1pcs(Air Displacement:1.5m3/min;Work Prssure:1.20Mpa;Auto Power:11KW
Min Required Air Storage:1pc(Storage Volume:1M3;Work Prssure:1.25Mpa;Temperature:100°C)   Vulcanizing boiler/tank-Tire/tyre Retreading Equipment * Full Auto PLC Controller   vulcanizing tyres number each time: spec:16,20,22.5,24   *Semi-automatic vulcanizing tyres number each time:   1.Tank Body Packaging:High quality rock wool,glass epoxy 5mm, merits: rust-proof ,strong anti-hitting performance,good keep warm effect(each time of vulcanizing can be 15% energy conservation than the tank made from 0.05mm galvanized sheet) 2.Built-in:Anti high temperature,high pressure motor,Driving Cycling fans, 3.Oil,Electric.Air three kinds warming setup(choice freely)    4.Auto Controlling Temperature,time alarm 5.The min. tank can be feeded into 6 tyres each time The Max. tank can be feeded into 24 tyres each time Can be customized according to your output.    Vulcanizing boiler/tank-Tire/tyre Retreading Equipment 1.The tyres are placed in this curing chamber and the pre-cured tread becomes adhered to the tyre through a vulcanizing process.
Our wide engineering capabilities and experience enable Zhongtaida to build chambers to suit our clients’ different preferences for size, steam heated, electric heated, or double heating system, semi-automatic and automatic chambers.
2. The power 64kw can be designed to your advice.
3. The pressure in the pot and in the package envelope fall to environment pressure which are controlled by the switch unit of zero-pressure.      Automatic electric Curing chamber 12~13 tires(380V  63KW)

Temperature	112 ~ 117°C
Capacity	12~13 tyres
Cure pot pressure	0.45 ~ 0.5Mpa
Inner tube pressure	0.65 ~ 0.7 Mp
Envelope working pressure	0.2 Mpa
Total power electricity	63 Kw
External dimensions (L × W × H)	1600x2100x2100 (mm)

   The production: Certificate Shipping&Packing   Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel Rubber Vulcanizing Pressure Vessel

Contact us if you need more details on Rubber Vulcanizing Pressure Vessel. We are ready to answer your questions on packaging, logistics, certification or any other aspects about vulcanization for rubber、vulcanizing tank. If these products fail to match your need, please contact us and we would like to provide relevant information.
