Steam Kettle 100L

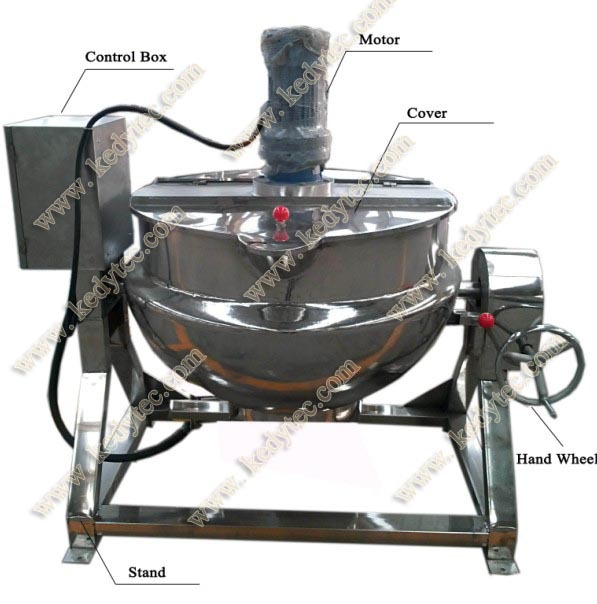

PREVIEW: The working principle of jacketed kettle is reach to the suitable temperature by changing inside pressure.   FEATURES: 1. Heating medium is steam with basic pressure. Advantages of pot include large heated area, high thermal efficiency, uniform heating and easy to control temperature, etc. 2. Pot material is made of stainless steel304, to prolong service life. Meanwhile, equip with pressure gauge, safety valve and control box. 3. Capacities: 50L~1000L 4. Consist of pot body, frame, hand wheel, etc. 5. The equipment can configure the mixing system according to different craft demand.   USAGES: 1. It is widely used in candy, medicine, can, drinks, etc. 2. Many restaurants or canteen are also use pot for soup, stew.   DETAILS VIEW:     CLASSIFY: 1. According to structure types 1.1.Vertical Fixed Jacketed Kettle 1.2. Tiltable Jacketed Kettle (The largest tiltable angle is 90 and the tilting type is manual.)   2. According to art demand 2.1. No Stirring Jacketed Kettle 2.2. Stirring Jacketed Kettle a. The pot with stirred device is stirring through top center. The speed reducer output shaft looper connects with stirrer shaft. It’s convenient to remove and clean.   b. Two types: ordinary scraper, planetary scraper.     MODEL:

MODEL	VOLUME (L)	HEATING AREA (m2)	INNER DIAMETER (mm)	DEPTH (mm)	WIDTH (mm)	HEIGHT (mm)	WEIGHT (kg)	DESIGN TEM (℃)
JS-50A.2	50	0.39	550	400	880	820	80	140
JS-100A.2	100	0.77	710	480	1000	870	106	140
JS-200A.2	200	1.29	840	530	1050	915	121	140
JS-300A.2	300	1.34	930	600	1100	960	139	140
JS-400A.2	400	1.98	1000	640	1120	1050	193	140
JS-500A.2	500	2.3	1080	680	1150	1090	251	140
JS-600A.2	600	2.7	1200	790	1280	1110	274	140
